Hello. Is it possible to render a custom view in Suite8 mode? I already created a custom view/action, it works and it is accessible via #/module/customAction URL but I noticed that it’s rendered in a classic mode - view is displayed in an iframe. I naively tried to add my custom action to the module_routing.yaml file with ‘true’ parameter value but it doesn’t work.
I am new to SuiteCRM 8.8 but I have many years of experience in good, old SugarCRM 5.2.0 :)))
Any help is appreciated!
Can you please try adding an entry for your module in $module_name_map and $action_name_map arrays for the custom module. I think we can check the portability(legacy to suite8) code at public/legacy/include/portability/module_name_map.php etc.
Hello Harshad. Thank you for your reply. I didn’t mention that I’m creating a custom view for Cases module so I guess that I should only add an entry to the $action_name_map array. I tried that, I even did it in an upgrade-safe way, it looks like SuiteCRM is properly reading my changes but the view is still rendered in a legacy mode. I am able to make an “alias” for my custom action, I can access my action through the name that I define in the $action_name_map array but it’s still rendered using an iframe. I will appreciate any further help!
You can find a file for legacy.module_routing at the below location.
config/services/module/module_routing.yaml
You can change the module to legacy by setting it to false.
contacts:
index: true // true means suite 8 view
list: true
record: false // false means classic view
parameters:
legacy.module_routing:
home:
index: false
list: false
record: false
saved-search:
index: true
list: true
record: false
calls-reschedule:
index: true
list: true
record: false
calls:
index: true
list: true
record: false
tasks:
index: true
Hi Jarek, I don’t know if the following helps you, but this will help to create a custom page just like the login page. Sharing here to get the feedback.
I have created a custom page that says just ‘hello’. The following steps helped me to achieve to add a custom page in suite8.
1.Create a new component called ‘hello’ at
extensions/defaultExt/app/src/views/custom/components/hello/hello.component.ts
import {Component, OnInit} from '@angular/core';
import {Router} from '@angular/router';
@Component({
selector: 'scrm-test-ui',
templateUrl: './hello.component.html',
styleUrls: [],
})
export class HelloUiComponent implements OnInit {
name:string = 'Harshad';
constructor(protected router: Router) {
}
ngOnInit() {
console.log('test init');
}
}
<div style="padding-top: 4rem;">
Hello {{ name }}
</div>
import {NgModule} from '@angular/core';
import {CommonModule} from '@angular/common';
import {FormsModule} from '@angular/forms';
import {RouterModule} from '@angular/router';
import {HelloUiComponent} from './hello.component';
@NgModule({
declarations: [
HelloUiComponent
],
exports: [
HelloUiComponent
],
imports: [
FormsModule,
CommonModule,
]
})
export class HelloUiModule {
}
import {Injectable} from '@angular/core';
import {Router, UrlTree} from '@angular/router';
import {Observable, of} from 'rxjs';
import {catchError, map, take} from 'rxjs/operators';
import {AuthService, SessionStatus,SystemConfigStore,AppStateStore} from 'core';
@Injectable({
providedIn: 'root'
})
export class HelloGuard {
constructor(
protected router: Router,
private authService: AuthService,
protected systemConfigStore: SystemConfigStore,
protected appStateStore: AppStateStore
) {
}
canActivate(): Observable<boolean | UrlTree> | Promise<boolean | UrlTree> | boolean | UrlTree {
return true;
}
}
import {NgModule} from '@angular/core';
import {CommonModule} from '@angular/common';
import {provideHttpClient, withInterceptorsFromDi} from '@angular/common/http';
import {Route, Router} from '@angular/router';
import {BaseMetadataResolver,AuthGuard,SystemConfigStore} from 'core';
import {HelloUiComponent} from './views/custom/components/hello/hello.component';
import {HelloUiModule} from './views/custom/components/hello/hello.module';
import {HelloGuard} from './services/custom/hello-guard.service';
@NgModule({ declarations: [], imports: [CommonModule], providers: [provideHttpClient(withInterceptorsFromDi())] })
export class ExtensionModule {
constructor(private router: Router, protected systemConfigStore: SystemConfigStore,) {
console.log('extension module enabled');
const routes = this.router.config;
const configRoutes = this.systemConfigStore.getConfigValue('module_routing');
console.log(configRoutes.length);
routes.push({
path: 'hello',
component: HelloUiComponent,
runGuardsAndResolvers: 'always',
canActivate: [HelloGuard],
resolve: {
metadata: BaseMetadataResolver
},
data: {
reuseRoute: false,
load: {
navigation: false,
preferences: false,
languageStrings: ['appStrings']
}
}
});
console.log(routes.length);
}
init(): void {
}
}
Enable the extension at extensions\defaultExt\config\extension.php
'enabled' => true,
Run php bin/console cache:clear
Run the following command to test the UI Angular Code
yarn run build-dev:extension defaultExt –watch
Reload the page (Control + F5)

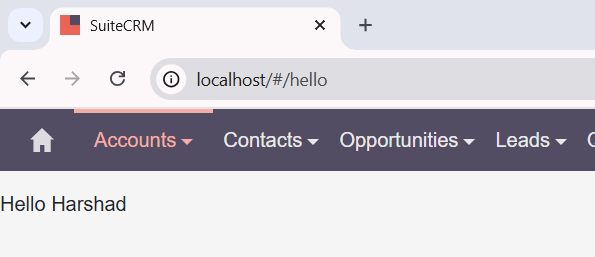

Change URL in the address bar
Please let me know your feedback or suggestions. Thanks!
Hello Harshad. First of all, I apologize for a delayed response - I’ve been busy with my old SugarCRM development over last 2 days.
I am very grateful to you for taking the time to give me such a comprehensive answer. I expected that I would need to write the code in Angular but I didn’t know where to start. Your solution works fine, thank you! I have what I wanted, a custom view in Suite8 mode.
I have one piece of advice for beginners like me. If you have never built a frontend extension before, you will not be able to run the following command:
yarn run build-dev:extension defaultExt
because you will receive the error saying:
Error: This command is not available when running the Angular CLI outside a workspace.
It’s because the angular.json file is missing in the root directory of SuiteCRM. I had to generate the angular.json file using the following command:
yarn merge-angular-json
This procedure is explained here: Frontend extension - Migrate to SuiteCRM 8.8+ :: SuiteCRM Documentation
To sum up, it’s high time to start learning Angular
.
I think that in the next step I will need the ability to save the data from my custom component to the database. Is there any good documentation illustrating database connection / inserting/updating a SuiteCRM module record from Angular component?
