Adding a new field in events contact subpanel

CarstenB · 11 February 2025 09:18

Hi gents

I am currently customizing the events module and want to add a “send invitation to test users” like in the campaing module.

I did the 3 steps in the following guide: sugarcrm - In SuiteCRM how to add custom field in sub panel from relationship table? - Stack Overflow

Since I am adding “only” a new field “testrecord” to the db-tables “fp_events_contacts_c”, “fp_events_leads_1_c” and “fp_events_prospects_1_c”, I slightly modified the code.

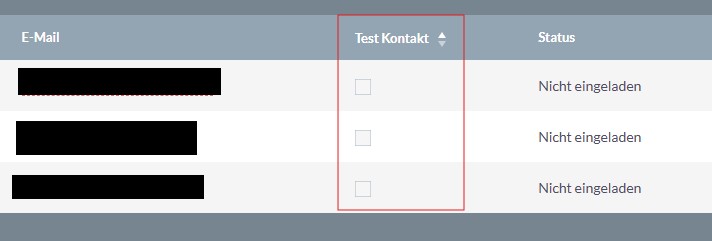

The issue is as following: I can see the new field in the subpanel (see screenshot), but the data are not populated from the DB. I checked the DB and updated the records manually, but still no luck.

What I did so far:

I created the file “fp_events_contactsMetaData.php” in “custom/metadata” with the following code (see array 8 “testrecord”):

<?php
// created: 2013-03-22 16:34:19
$dictionary["fp_events_contacts"] = array(
  'true_relationship_type' => 'many-to-many',
  'relationships' =>
  array(
    'fp_events_contacts' =>
    array(
      'lhs_module' => 'FP_events',
      'lhs_table' => 'fp_events',
      'lhs_key' => 'id',
      'rhs_module' => 'Contacts',
      'rhs_table' => 'contacts',
      'rhs_key' => 'id',
      'relationship_type' => 'many-to-many',
      'join_table' => 'fp_events_contacts_c',
      'join_key_lhs' => 'fp_events_contactsfp_events_ida',
      'join_key_rhs' => 'fp_events_contactscontacts_idb',
    ),
  ),
  'table' => 'fp_events_contacts_c',
  'fields' =>
  array(
    0 =>
    array(
      'name' => 'id',
      'type' => 'varchar',
      'len' => 36,
    ),
    1 =>
    array(
      'name' => 'date_modified',
      'type' => 'datetime',
    ),
    2 =>
    array(
      'name' => 'deleted',
      'type' => 'bool',
      'len' => '1',
      'default' => '0',
      'required' => true,
    ),
    3 =>
    array(
      'name' => 'fp_events_contactsfp_events_ida',
      'type' => 'varchar',
      'len' => 36,
    ),
    4 =>
    array(
      'name' => 'fp_events_contactscontacts_idb',
      'type' => 'varchar',
      'len' => 36,
    ),
    5 =>
    array(
      'name' => 'invite_status',
      'type' => 'varchar',
      'len'=>'25',
      'default'=>'Not Invited',
    ),
    6 =>
    array(
      'name' => 'accept_status',
      'type' => 'varchar',
      'len'=>'25',
      'default'=>'No Response',
    ),
    7 =>
    array(
      'name' => 'email_responded',
      'type' => 'int',
      'len' => '2',
      'default' => '0',
    ),
    8 =>
    array(
      'name' => 'testrecord',
      'type' => 'bool',
      'len' => '1',
      'default' => '0',
    ),
  ),
  'indices' =>
  array(
    0 =>
    array(
      'name' => 'fp_events_contactsspk',
      'type' => 'primary',
      'fields' =>
      array(
        0 => 'id',
      ),
    ),
    1 =>
    array(
      'name' => 'fp_events_contacts_alt',
      'type' => 'alternate_key',
      'fields' =>
      array(
        0 => 'fp_events_contactsfp_events_ida',
        1 => 'fp_events_contactscontacts_idb',
      ),
    ),
  ),
);

I repeated it for leads and prospects too. After a Quick Repair & Restore AND executing the SQL query, I verified the new field in the DB useing PHPmyAdmin. Check!

Then I added the file “_override_event_testrecord.php” in “custom/Extension/modules/Contacts/Ext/Vardefs” with the following code:

<?php

$dictionary['Contacts']['table'] = 'fp_events_contacts_c';
$dictionary['Contacts']['fields']['testrecord']['massupdate'] = false;
$dictionary['Contacts']['fields']['testrecord']['name'] = 'testrecrod';
$dictionary['Contacts']['fields']['testrecord']['type'] = 'bool';
$dictionary['Contacts']['fields']['testrecord']['studio'] = false;
// $dictionary['Contacts']['fields']['testrecord']['source'] = 'non-db';
$dictionary['Contacts']['fields']['testrecord']['vname'] = 'LBL_TESTRECORD';
$dictionary['Contacts']['fields']['testrecord']['importable'] = false;

?>

And repeated it for Leads and Prospects (adjusting the namespace of course).

At the end I created the file “FP_events_subpanel_fp_events_contacts.php” in “custom/modules/Contacts/metadata/subpanels/” with the following code:

<?php
// created: 2025-01-23 13:17:42
$subpanel_layout['list_fields'] = array(
  'checkbox' =>
  array(
    'vname' =>  'LBL_Blank',
    'widget_type' => 'checkbox',
    'widget_class' => 'SubPanelCheck',
    'checkbox_value' => true,
    'width' => '5%',
    'sortable' => false,
    'default' => true,
  ),
  'name' =>
  array(
    'name' => 'name',
    'vname' => 'LBL_LIST_NAME',
    'sort_by' => 'last_name',
    'sort_order' => 'asc',
    'widget_class' => 'SubPanelDetailViewLink',
    'module' => 'Contacts',
    'width' => '20%',
    'default' => true,
  ),
  'account_name' =>
  array(
    'name' => 'account_name',
    'module' => 'Accounts',
    'target_record_key' => 'account_id',
    'target_module' => 'Accounts',
    'widget_class' => 'SubPanelDetailViewLink',
    'vname' => 'LBL_LIST_ACCOUNT_NAME',
    'width' => '20%',
    'sortable' => false,
    'default' => true,
  ),
  'phone_work' =>
  array(
    'name' => 'phone_work',
    'vname' => 'LBL_LIST_PHONE',
    'width' => '15%',
    'default' => true,
  ),
  'email1' =>
  array(
    'name' => 'email1',
    'vname' => 'LBL_LIST_EMAIL',
    'widget_class' => 'SubPanelEmailLink',
    'width' => '20%',
    'sortable' => false,
    'default' => true,
  ),
  'testrecord' =>
  array(
    'vname' => 'LBL_TESTRECORD',
    'widget_type' => 'checkbox',
    'width' => '5%',
    'sortable' => true,
    'default' => true,
  ),
  'event_status_name' =>
  array(
    'vname' => 'LBL_STATUS',
    'width' => '10%',
    'sortable' => false,
    'default' => true,
  ),
  'event_accept_status' =>
  array(
    'width' => '10%',
    'sortable' => false,
    'default' => true,
    'vname' => 'LBL_ACCEPT_STATUS',
  ),
   'edit_button' =>
  array(
    'vname' => 'LBL_EDIT_BUTTON',
    'widget_class' => 'SubPanelEditButton',
    'module' => 'Contacts',
    'width' => '5%',
    'default' => true,
  ),
  'remove_button' =>
  array(
    'vname' => 'LBL_REMOVE',
    'widget_class' => 'SubPanelRemoveButton',
    'module' => 'Contacts',
    'width' => '5%',
    'default' => true,
  ),
  'e_accept_status_fields' =>
  array(
    'usage' => 'query_only',
  ),
  'event_status_id' =>
  array(
    'usage' => 'query_only',
  ),
  'e_invite_status_fields' =>
  array(
    'usage' => 'query_only',
  ),
  'event_invite_id' =>
  array(
    'usage' => 'query_only',
  ),
  'first_name' =>
  array(
    'name' => 'first_name',
    'usage' => 'query_only',
  ),
  'last_name' =>
  array(
    'name' => 'last_name',
    'usage' => 'query_only',
  ),
  'salutation' =>
  array(
    'name' => 'salutation',
    'usage' => 'query_only',
  ),
  'account_id' =>
  array(
    'usage' => 'query_only',
  ),
);

Repeated it for Leads ans Prospects and then again a Quick Repair & Restore.

Conclusion:

I can see the relationship to the Events in the Contacts, Leads and Prospect in a subpanel.
I can see the testrecord checkbox in the subpanel of the Event
BUT it won’t be populated with data from the DB.

Since the subpanel in Events is not an ordinary subpanel, I am currently struggeling a lot. Any help would be appriciated very much.

Btw: I am using SuiteCRM 8.8.0 in DEV and PROD.

Cheers,
Carsten

pgr · 11 February 2025 12:33

If you don’t know this post, it has plenty of nice material, although mostly for v7:

github.com/salesagility/SuiteDocs

List of valuable posts for future content

opened 01:07PM - 05 Feb 19 UTC

pgorod

Type: Questions writing

This Issue is a big list of stuff I saw (or wrote!) on the Forums, and in other …sites, that I think could be valuable content for the Docs site. ## How to use 1. Choose one you like 1. Decide if you want to make it part of one of the Guides (admin, developer, etc) or if it's more in the nature of a Technical Blog post 1. Grab the text (if it's copyright-free) or just get the idea and write it up yourself 1. Add up-to-date screenshots for extra points # How to use SuiteDocs Have a look at the [How to Contribute to SuiteCRM Documentation](https://docs.suitecrm.com/community/contributing-to-docs/) guidelines which includes how to set up a local instance; tone of voice and best practises :+1: Of course give either @pgorod, @samus-aran or other members of the @salesagility/suitecrm-core a mention if you need any help!

Check out the links mentioning “Fields in relationships” which is what you’re trying to do, if I am not mistaken. It’s not just 3 steps, I am afraid…

CarstenB · 11 February 2025 16:23

Hi @pgr

It is not easy to implement it, but with the other documentations, it’s a doable. I couldn’t figure out, how it will works with a Boolen field → I never got it running. But if I use VCHAR field and refere it to a selection list, it works. Now, I have to rewrite all my changes, but the result counts at the end.

Thank you for your hint.

Cheers,
Carsten
